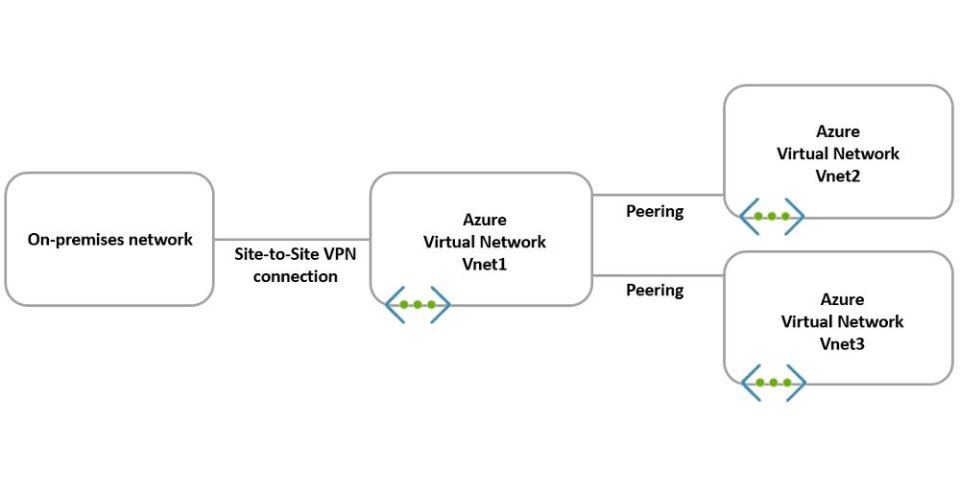

You work for MDFT Pro, a well-known training agency, and you have the hybrid network shown in the Network Diagram exhibit.

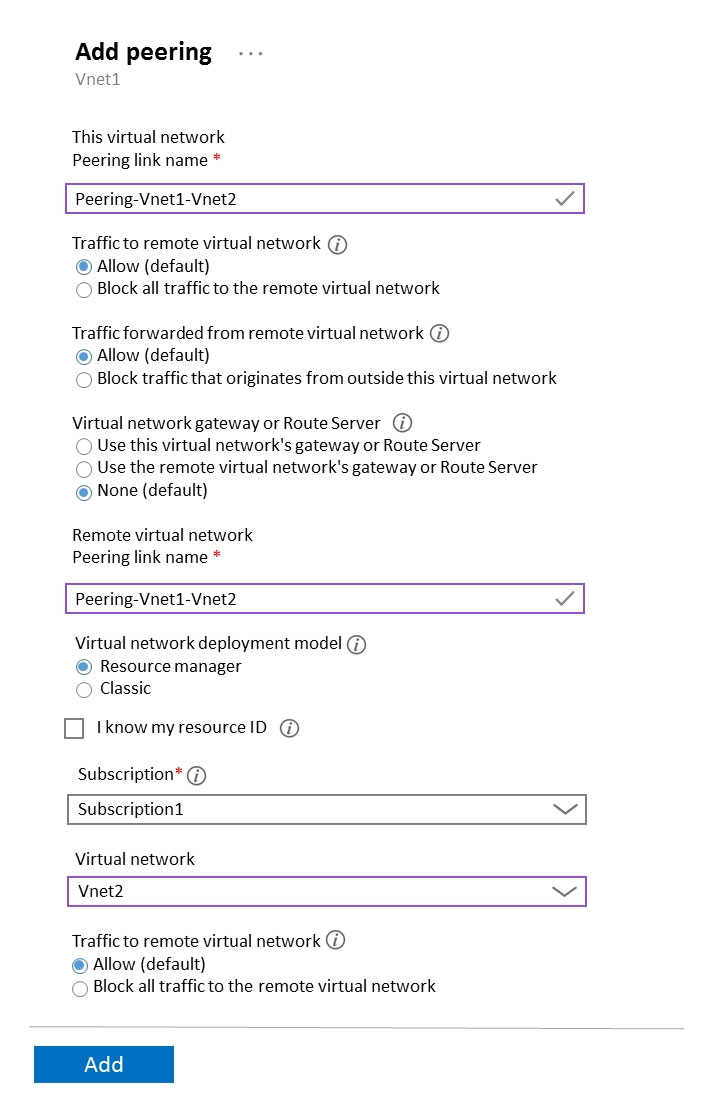

You have a peering connection between Vnet1 and Vnet2 as shown in the Peering-Vnet1-Vnet2 exhibit.

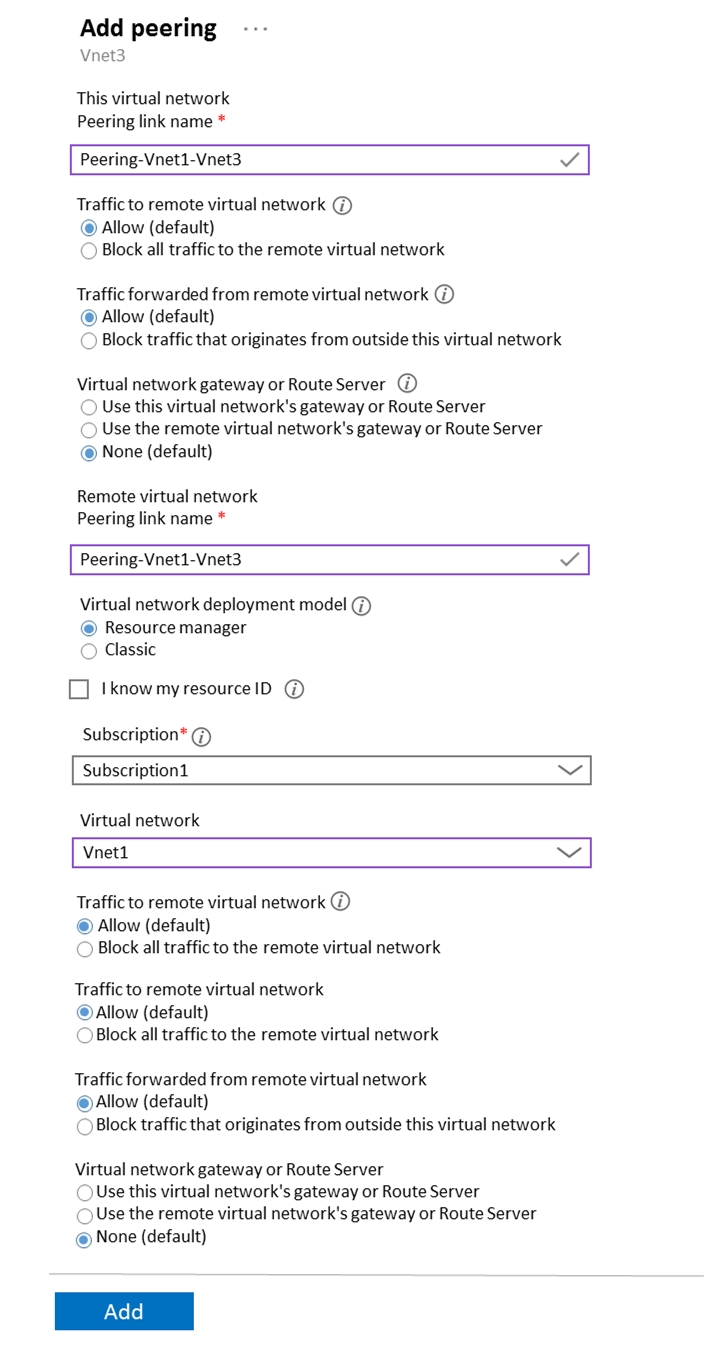

You have a peering connection between Vnet1 and Vnet3 as shown in the Peering-Vnet1-Vnet3 exhibit.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
The resources in Vnet2 can communicate with the resources in Vnet1
The resources in Vnet2 can communicate with the resources in Vnet3
The resources in Vnet2 can communicate with the resources in the on-premises network
The resources in Vnet2 can communicate with the resources in Vnet1 is correct. The peering from Vnet1 to Vnet2 has "Traffic forwarded from remote virtual network" enabled, so Vnet2 resources can reach Vnet1.
The resources in Vnet2 can communicate with the resources in Vnet3 is incorrect. Vnet2 and Vnet3 are not peered and have no transitive path, so they cannot communicate.
The resources in Vnet2 can communicate with the resources in the on-premises network is incorrect. Vnet2 is not peered to the gateway Vnet1 in a way that permits gateway transit, so it cannot reach the on-premises network.
